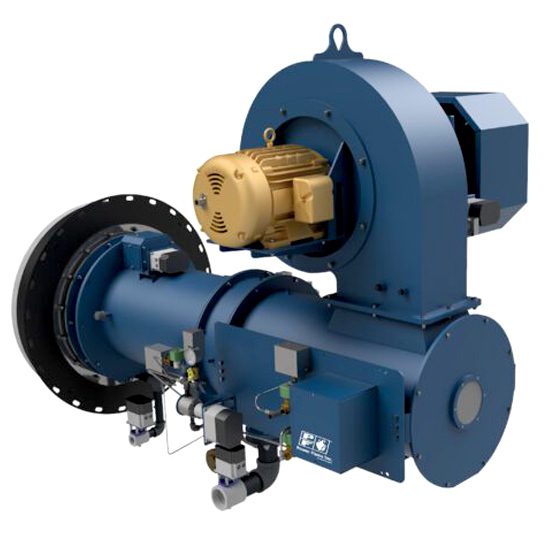

Power Flame is proud to unveil the HELOX™ Burner, our latest innovation in energy-effificient, Low NOx combustion technology, available in sizes from 90 – 800 BHP. Designed to meet the growing demand for cleaner energy solutions, the HELOX achieves natural gas emissions of < 30 ppm NOx and <50 ppm CO while fifiring as low as 3% O2 without the need for flflue gas recirculation (FGR).

The HELOX Burner features an emissions turndown of 6:1 and a fuel turndown of 10:1 for both gas and oil. It utilizes an adjustable iris within the burner assembly and is equipped with fuel auto-changeover between gas and liquid without requiring disassembly or downtime.

The burner also uses a staged fifiring design that incorporates premix and fuel-rich zones, ensuring optimal combustion and reduced environmental impact. The liquid fuel nozzle is designed to operate using low pressure atomization (< 3 PSIG) powered by quiet regenerative blowers, eliminating the need for noisy high-pressure compressors.

Key Features

• Low emissions: <30 ppm NOx and <50 ppm CO on natural gas
• High efficiency: Operates at 3% O₂ without FGR
• Emissions turndown: 6:1
• Fuel turndown: 10:1 for both gas and oil
• Patented adjustable iris for precise combustion control
• Automatic fuel changeover between gas and oil with no disassembly or downtime
• Staged firing design with premix and fuel-rich zones for optimal combustion and reduced environmental impact.
• Low-pressure (<3 PSIG) liquid fuel atomization using quiet regenerative blowers
  – No high-pressure compressors are required.
• Ten available models with capacities from 90 to 800 BHP (3.78 to 33.6 MMBH)

Design & Operational Advantages

• Modular construction reduces initial investment and long-term maintenance costs
• Optional O₂ trim and HMI touchscreen packages for enhanced control
• Factory fire-tested to ensure smooth installation and reliable startup
• Standard Siemens LMV52 controls, with easy configuration for Fireye or Autoflame systems
