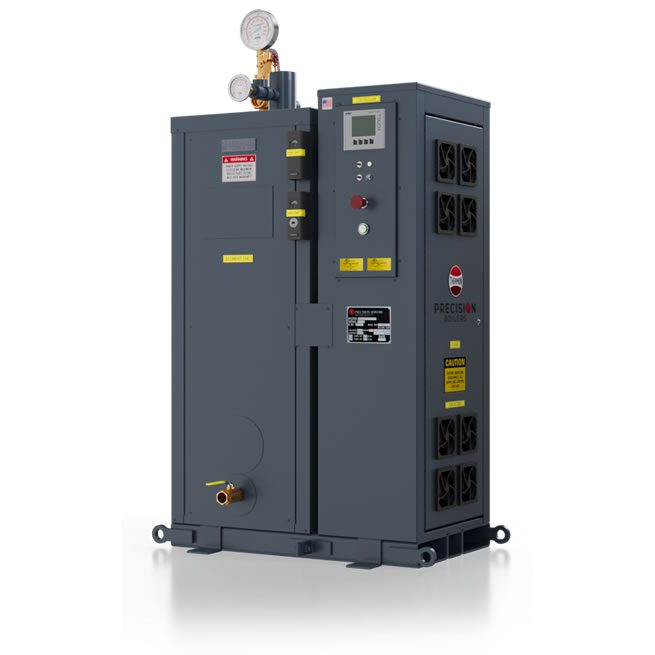

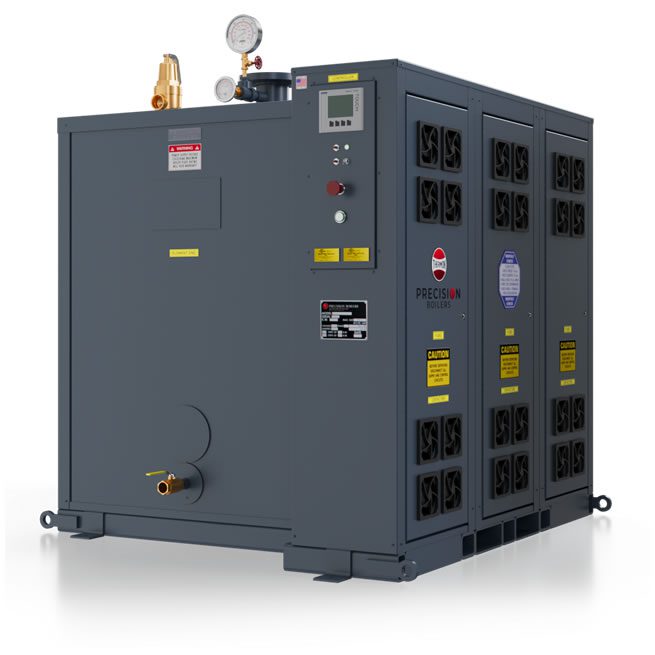

Power, efficiency, and precise temperature control in a compact electric hot water boiler that is also easy to install. Thermon’s Minke™ Electric Hot Water Boiler from the Precision Boiler family can be engineered to order, including skid packages. The vertical design doesn’t require horizontal removal clearance, making it a great fit in existing piping systems or standing alone in smaller spaces.

Key Features

• Small footprint saves installation and building construction costs.
• Accessible temperature control with the control sensor located in the outlet pipe.
• Individual immersion heating elements are 21/2” square flanged for ease of replacement. The elements are made of a highly corrosion resistant Incoloy 800 sheath, and nickel-chromium resistance wire packed in magnesium oxide powder encased in a U-tube design.

Standard Features

• BACnet/MODbus Communications
• Precision Perfect Panel
• CSD-1 Compliant (where required)
• 100kA SCCR
• BMS Dry Contact Package
• Pre-Registered CRN’s for all Provinces
• Split-Based Design
• Flanged Connections

Applications

The Minke Electric Hot Water Boiler is an ideal choice for industrial applications demanding consistent, high quality steam production.

• Central Steam Plants
• Hospitals, Universities, Institutional Facilities
• Food Processing
• Pharmaceutical
• Beverage Distillation and Production
