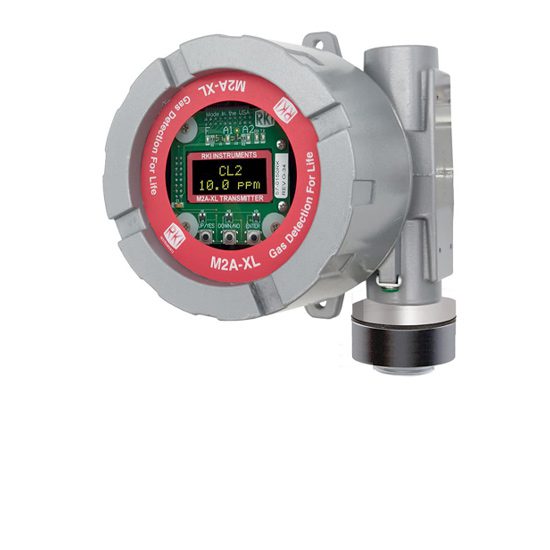

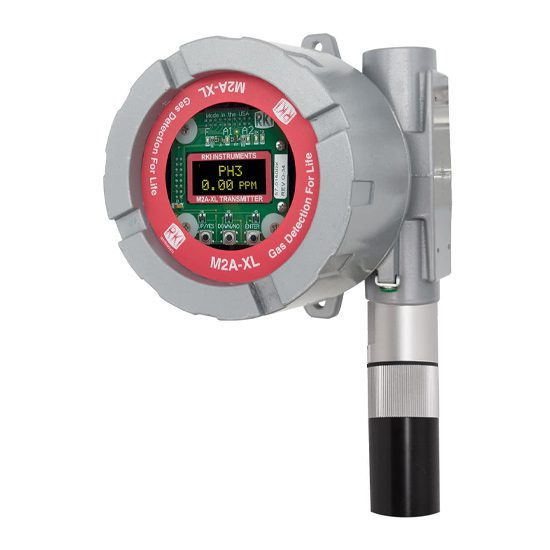

The RKI M2A-XL is a state-of-the-art transmitter that can operate as an independent, stand-alone monitor or as part of an integrated system. The M2A-XL connects with an analog or digital signal to virtually any controller, PLC, or DCS. Setup procedures are simplified with user friendly push buttons and OLED menus. It utilizes a magnetic wand technique for performing non-intrusive calibration. The M2A-XL provides an automatic zero drift correction feature, which results in more stable readings and reduces the need for adjustments due to sensor aging.

Features

• Operates with or without a controller
• Direct digital readout with OLED cold temperature display
• Available gases include
  ◦ LEL, O2, H2S, CO, CO2, and 100% Vol CH4
  ◦ Toxic gases include NH3, AsH3, Cl2, ClO2, HCN, NO2, & SO2
• Infrared sensor for combustibles and CO2
• 4-20 mA & digital Modbus outputs standard
• 2 fully programmable alarm relays & fail relay
• Non-intrusive calibration via magnetic wand
• Explosion proof construction
• Patented water repellent sensor cover
• User friendly setup, push buttons & OLED menus
• Long-life sensors (2 + years typical)
