A Guide to the Power Flame Type FD/FDM Process Burner
If you’re looking for an innovative and reliable gas burner, the ,Power Flame FD/FDM Process Burner will meet your needs and exceed your expectations. This gas burner boasts an exceptional operational range spanning from 37,500 up to 9,300,000 BTU/hr. The Power Flame Type FD/FDM is a remarkable HVAC and process burner engineered to fire process heating appliances as well as air handling systems that need indirect or direct heating of the air stream.
The direct-fired, fixed air model FD can fire at either at 90 degrees or in line with the process air flow — achieving turndowns of 40:1 or greater. However, the indirect fired, modulating air model FDM burner can achieve on-ration control over a 20:1 turndown.
The Power Flame Type FD/FDM is suitable for an expansive list of air heating and process heating applications — thanks to its high combustion efficiencies, reliable direct spark ignition, and low maintenance. As a part of an integrated combustion package, the Type FD/FDM Process Burner is available with optional pre-piped and pre-wired gas trains. It can be configured to meet your specific requirements as well as your any local or national codes.
Model FDM-modulating pie shaped dampers allow close control of air/fuel ratios over a 20:1 turndown for special gas fired air handling applications.
Type FD Process Burner Applications
The Power Flame Type FD burner is constructed to deliver hassle-free startup and long-lasting reliable performance. The Power Flame Type FD burner is uniquely engineered to fire process air heating applications that need direct heat to the air stream of the system through the use of L.P., natural, and other types of gaseous fuels. This versatile, fixed-air, direct-heating gas burner can achieve an impressive turndown ratio that exceeds 30:1 and shorter flame lengths with outstanding flame stability spanning across its whole modulating range. It represents a new generation of burners that are especially well suited for a variety of applications that move large volumes of air at high velocity.
Type FDM Process Burner Applications
The Power Flame Type FDM is engineered for high turndown operation firing into heat exchangers for air handling applications or directly into process streams of air, such as ovens and other types of lower temperature industrial applications. The Type FDM burner is fitted with moveable air dampers to the inlet of the blower assembly that facilitates on-ratio control over an impressive 20:1 turndown range. The Type FDM burner is ideally suited for indirect fired units requiring high turndowns. It can also be applied on direct fired applications where on-ratio control is required.
.

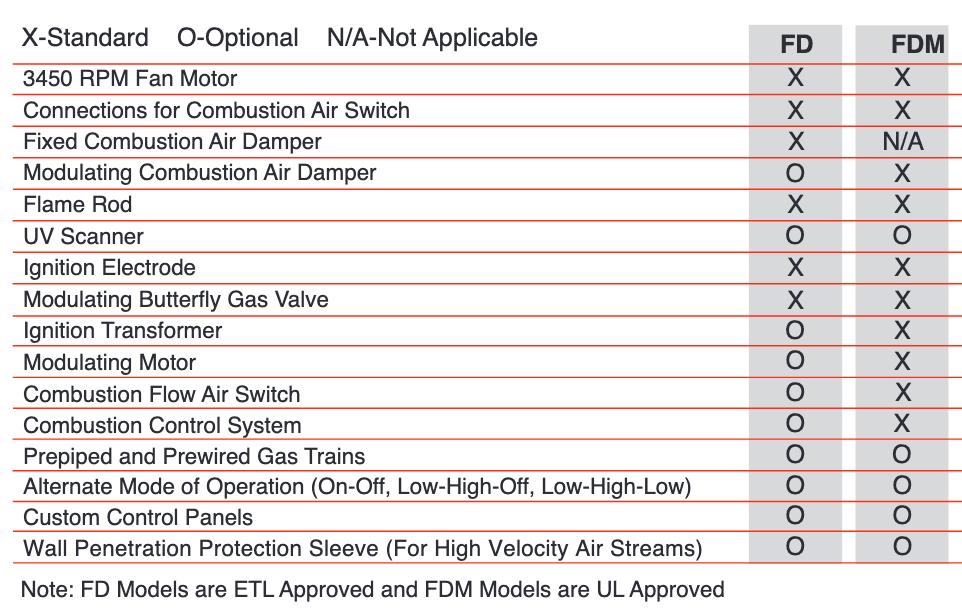

Power Flame Type FD/FDM Standard and Optional Features
.

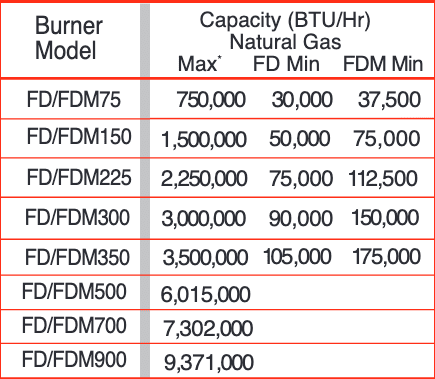

Power Flame Type FD/FDM Process Burner Ratings and Specs
Depending on your facility’s requirements, you can choose from a total of eight different Power Flame Type FD/FDM burners — with max natural gas capacity ranging from as low as 30,000 up to 9,371,000 BTU/hr
.
Type FD/FDM Safety Features
The Power Flame Type FD/FDM process burner is factory fire tested and shipped as a complete assembly, which further simplifies installation and integration. Prewired and pre-piped gas trains are an available option as a component of the integrated combustion package. This package can be configured to meet any local and national codes.
It can also be configured based on your specified requirements. Each Power Flame Type FD burner is ETL listed and FDM models are UL approved, which serves as proof of its compliance to North American safety standards.
.
Contact ATI of NY for the Power Flame Type FD/FDM Process Burner
Every Power Flame Incorporated burner is infused with more than a half of a century of exceptional experience and cutting-edge solutions to deliver optimum efficiency and performance. Power Flame burners are versatile enough to cover a myriad of applications across virtually all industries.
As the authorized representative for Power Flame, ATI of New York offers their entire state-of-the-art lineup of equipment. Our experienced team will carefully listen to your facility’s needs and guide you to the most suitable solution. Whether you have specific questions about the Power Flame FD/FDM or any other model, we are here to help you make the most economical and efficient decision. Contact ATI of New York today.
