In the future, you can expect power grids to be engineered with several smaller, decentralized Combined Heat & Power (CHP) systems. Combined heat and power systems are a clean and efficient way of generating thermal energy and electric power from a single source.
How do CHP systems work? The engine drives the generator and creates electricity. All of the residual heat created during this process is then recaptured and transformed into useful heat.
At Applied Technologies of New York, we’re proud to be the authorized manufacturer’s representative for 2G Energy INC CHP systems. We offer the full lineup of cutting edge products and will help you choose the best solution based on your facility’s unique needs. Continue reading to learn more about the 2G Energy CHP power plant systems and 2G Energy's containerized solutions offered at ATI of New York.
2G Energy Combined Heat & Power Systems
As a leader within the space, 2G Energy is a renowned CHP cogeneration specialist offering a full range of best-in-class systems spanning from the 50 up to 2,000 kW power range. 2G Energy boasts the most reliable and efficient solutions through a unique standardized modular design and an unwavering focus on engineering the best product and delivering world-class customer service. To date, more than 5,000 2G systems are installed worldwide.
The g-box 50 — 50 kW Combined Heat & Power System
As 2G’s small, profitable, and quiet power plant, the g-box 50 produces up to 50 kW. It boasts a connection-ready module that features a control cabinet with PLC controller. Because the unit works exceptionally efficient, the low amount of noise makes it perfect for a range of applications, including residential buildings, offices, or hotels. A few key highlights of the g-box 50 include:
- Low maintenance, high availability, and exceptional reliability.
- Comes connection ready and simple integration.
- Since it’s completely water cooled, it reduces money spent on expensive air duct installation.
- It boasts a compact design that requires minimal installation space.
- Exceptionally economical with the highest thermal efficiencies via condensing technology.
- The fully enclosed compact module is extremely quiet.

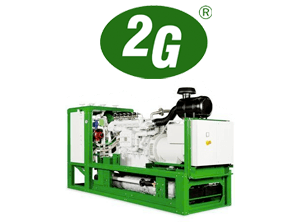

The patruus — 50 up to 64 kW Combined Heat & Power System
Featuring the robust engine technology that has been utilized for several decades, the patruus is undoubtedly the most experienced CHP system in the family. The patruus is an efficient and resilient supplier of heat and power in the electrical output range of up to 64 kW. It includes:
- An optional twinpack configuration with two modules per container that can double the power
- Engineered as a low-maintenance, resilient, connection-ready compact module
- Available with either turbocharged or naturally-aspirated engines
- High plant availability due to renowned engine technology
- Easy-to-use modular design allows simple installation in hard-to-reach areas
The aura — 100 up to 150 kW Combined Heat & Power System
Featuring a low-charged turbocharger and 2G’s proprietary and cutting-edge Lambda 1 technology, the aura is characterized by an exceptionally low exhaust emissions. As a result, it continues to meet the increasingly stringent requirements for low NOx limits. A few key highlights of the aura include:
- Easy-to-access, service-friendly motor, and exceptional reliability
- Low NOx emissions and extremely high heat efficiency
- Engineered as a ready-to-connect compact module
- Exceptionally higher performance than 15% of the other conventional systems offering the same displacement
The agenitor — 80 up to 450 kW Combined Heat & Power System
Made possible through extensive work conducted by the 2G research and development team, the agenitor is a modern marvel with world-class features. Enhancing combustion chamber geometry has allowed engineers to significantly increase the efficiency of the system.
A few of the key highlights of the agenitor include:
- A highly-efficient power plant with optimized gas engine that results in lower fuel costs
- Extremely reliable — even in rigorous stop-and-start operation — because of the wear-resistant components in the engine
- Double the power with the optional twinpack configuration with two modules per container
- The modular design of this CHP system allows it be easily installed in hard-to-reach places
- Low maintenance system and very resilient

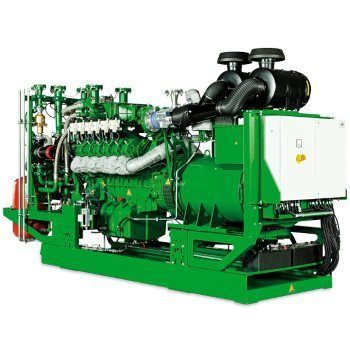

The avus — 550 to 2,000 kW Combined Heat & Power System
The avus is a very efficient 2G power plant for facilities with higher electric power consumption needs — typically above 500 kW. This system is commonly used to supply micro grids or meet the needs for larger industrial projects.
The avus is a modular built system that includes all required components and boasts simple installation. A few additional key highlights of this powerful powerhouse includes:
2G Containerized Solutions for Combined Heat & Power Systems
When you install 2G power plants, you have a vast range of possibilities — depending on the requirements for sound insulation and local conditions. You can incorporate your power plant in your existing heating systems, into an existing building or structure, or set up individually in an engine room or container. With one of our cutting-edge containers and sound insulation package, your noise emissions can be slashed as low as 35 dB (A) at around 10 m.
Compact Container
The Compact Container is offered in one size: 19.7’ x 8’ x 9.2’. However, you do have two acoustic emission options:
- Standard at 65 decibels (A)
- Super silent up to 55 decibels (A)
Standard Container
The Standard Container offers reduced acoustic emissions of only 65 decibels, while the super silent Standard Container can be as low as 52 decibels. This container is offered in an array of sizes:
- 21.3’ x 9.8’ x 9.8’
- 29.5‘ x 9.8‘ x 9.8‘
- 34.4‘ x 9.8‘ x 9.8‘
- 39.4‘ x 9.8‘ x 9.8‘
High Line Container
The High Line Container offers a standard emissions of up 65 decibels, while the super silent High Line Container can be as low as 45 decibels. This container is available in a wide range of sizes, including:
- 29.5’ x 9.8’ x 12.1’
- 34.4’ x 9.8’ x 12.1’
- 39.4’ x 9.8’ x 12.1’
- 39.4’ x 14.1’ x 17.5’

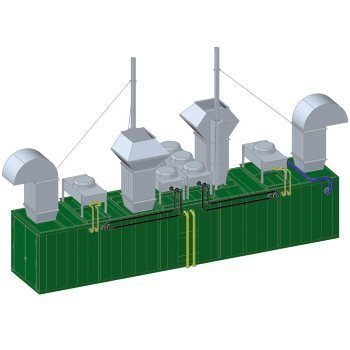

Container Twin Pack
The Container Twin Pack offers standard acoustic emissions of up to 65 decibels, while the super silent Container Twin Pack offers acoustic emissions up to 52 decibels. You can choose from two different sizes:
- 42.7’ x 9.8’ x 9.8’
- 49.2’ x 9.8’ x 9.8’

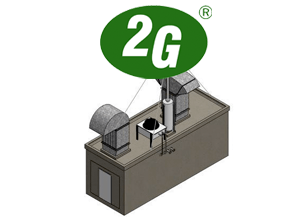

Standard Concrete Acoustic Enclosure
The Standard Concrete Acoustic Enclosure is uniquely designed to reduce acoustic emissions with the standard unit delivering up to 45 decibels, while the super silent can remarkable deliver up to 35 decibels.
- 29.5’ x 10.8’ x 12.1’
- 30’ x 14.1’ x 12.1’
- 37.4’ x 14.1’ x 12.1’

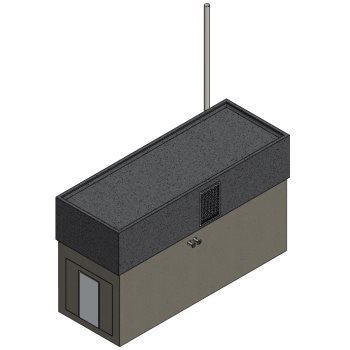

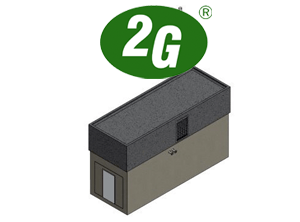

High Line Concrete Acoustic Enclosure
The High Line Concrete Acoustic Enclosure delivers acoustic emissions as low as 45 decibels, while the super silent version delivers emissions as low as 35 decibels. The High Line Concrete Acoustic Enclosure is available in the following sizes:
- 29.5’ x 10.8’ x 17.6’
- 30’ x 14.1’ x 17.6’
- 37.4’ x 14.1’ x 17.6’

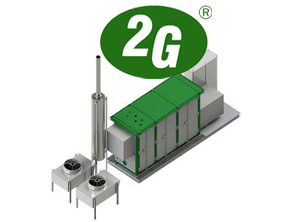

Outdoor Sound Capsule
The standard Outdoor Sound Capsule can deliver acoustic emissions as low as 65 decibels. In addition, the Outdoor Sound Capsule is offered in a vast range of sizes — depending on the product.

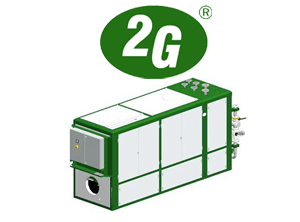

Sound Capsule
The standard Sound Capsule can deliver acoustic emissions as low as 65 decibels. In addition, the Sound Capsule is offered in a vast range of sizes — depending on the product.
Learn More About 2G Energy
Contact ATI of New York for 2G Energy Products
Looking to learn more about the cutting-edge lineup of products offered by 2G Energy? ATI of New York is the authorized manufacturer’s representative for 2G Energy. We’ll listen to your needs and guide you to the best product. Contact ATI of New York today.
